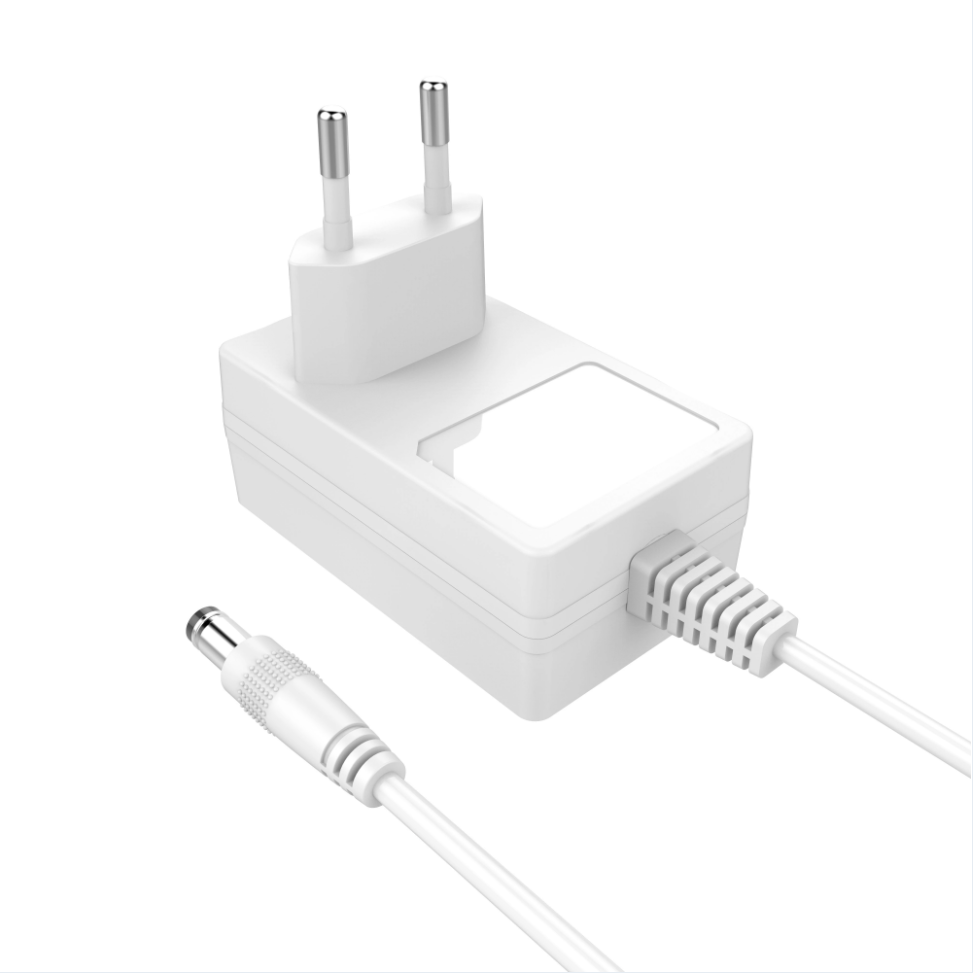

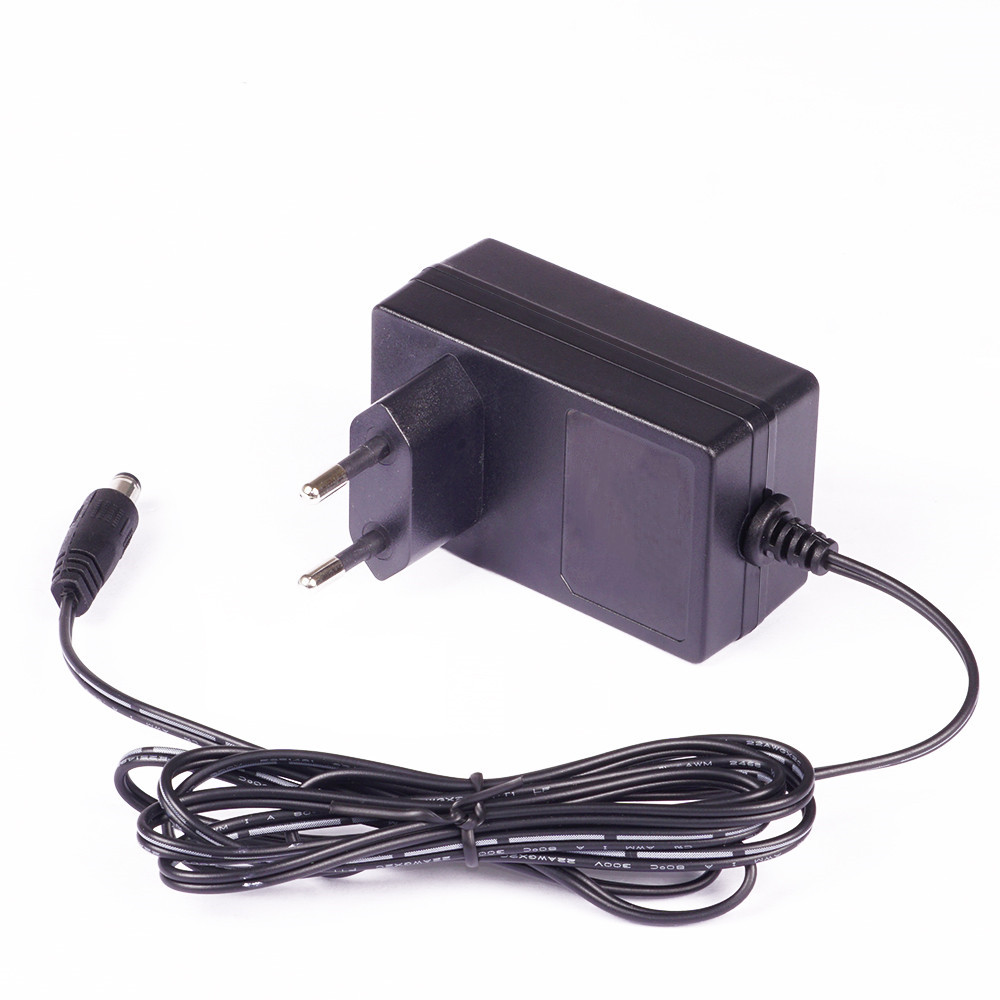

Product name：24W-36W EU Power adapter

1. Brand name: COOLWOLF
2. Input pins: EU
3. Input voltage range: 90-264v (wide voltage)
4. Output voltage range: 3V~48V
5. Output current range: 100~4000mA
6. Energy efficiency: V, VI
7. Output DC interface: 5.5*2.5, 5.5*2.1, 4.0*1.7, 3.5*1.35, 2.5*0.7mm
8. Output DC line length: 1.5m (Customizable)
9. Color: black and white
10. Certification: CE/GS/ ROHS

Details

Product name: Power adapter
Input voltage: 90V~264V(wide voltage)
Voltage frequency: 50~60Hz
Output voltage: 3V~48V
Output power: 24W~36W
Output DC connector: DC head 5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 2.5*0.7mm, 3.5*1.35mm and other specifications
Work efficiency: 80-85%
Working temperature: 0 ℃ to + 50 ℃
Storage temperature: - 20 ℃ to + 80 ℃
Product aging: 100% full load aging
Output ripple & noise: 80-120mv
Protection function: short circuit protection, overvoltage protection, overload protection 105%-150% rated power, automatic protection
Insulation strength: input-output AC 3000V/10mA,1 minute
Insulation resistance: the input - output 500 m or more Ω input - shell Ω 500 m or more
Applicable products: tablet computer, digital electronics, toys, lamps and lanterns, electronic products, program-controlled switches, routers, small appliances, security equipment and so on.
